Transport

Camden Valley Way Stage 3

Location
Camden Valley, New South Wales
Value
$70 million
Client
Roads and Maritime Services
Status
Complete
BMD Constructions_Camden Valley Way_New South Wales

About the project

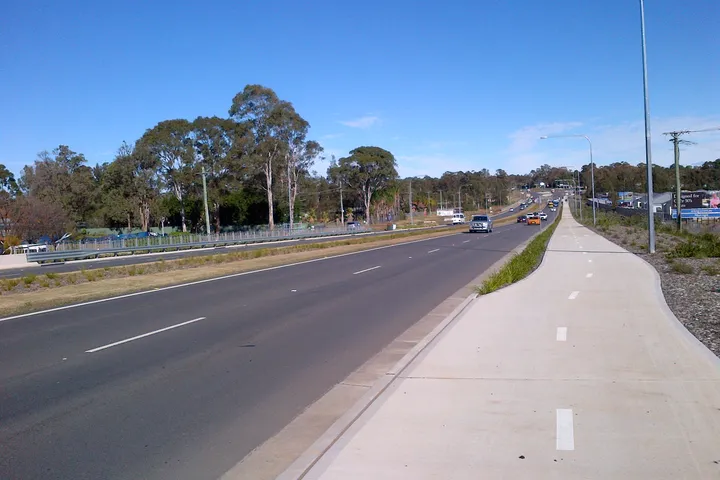

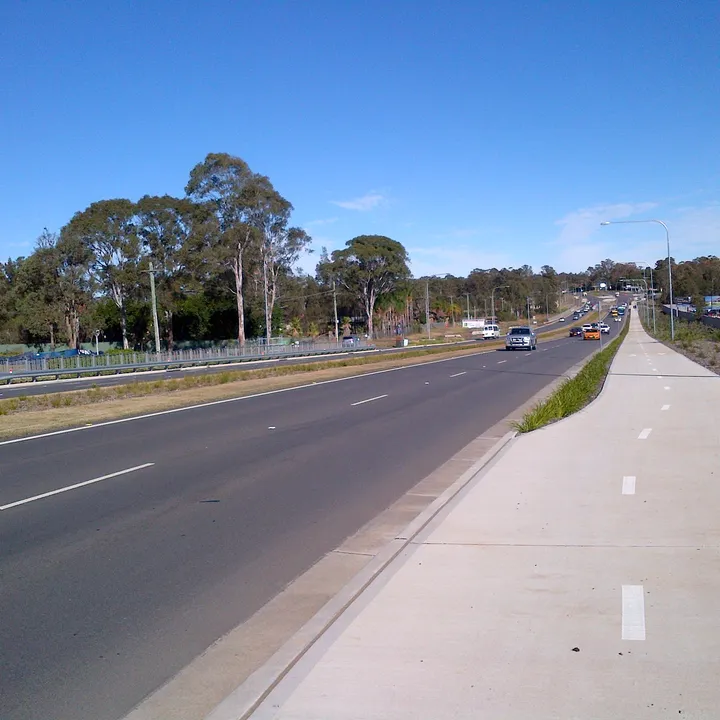

Camden Valley Way is a major arterial road linking the Hume Highway, M7 and M5 interchange at Leppington in Sydney’s south-west. BMD Constructions was engaged to upgrade 3.3 kilometres of the existing two lane single road, from Cowpasture Road and Bringelly Road intersection to Ingleburn Road, into a four lane divided dual carriageway with a shared pedestrian and cyclist path.

Scope

Earthworks

Construction of flexible composite pavement

Demolition of the existing bridge

Construction of an upgraded bridge over the heritage listed Water NSW Canal

Construction of twin three span bridges over Bonds Creek

Construction of a single span bridge over high pressure gas main pipelines in the eastern verge adjacent to the Camden Valley Way carriageway

Service relocations for Endeavour Energy, Telstra, Sydney Water and management of high pressure gas integrity works

Installation of five new signalised intersections

Construction of three major box culvert drainage structures and other road drainage

BMD Constructions_Camden Valley Way_New South Wales 2
BMD Constructions_Camden Valley Way_New South Wales 3

Outcomes

BMD overcame challenges unique to the project location including working around multiple high-pressure gas mains and the heritage listed Upper Canal structure.

By constructing a bridge over the sandstone block structure, BMD satisfied Sydney Catchment authority’s strict guidelines of ensuring there was no damage to the historic structure.

A complete catch deck under the new structure during construction ensured no construction contaminates entered the potable water running through the canal.

BMD delivered three bridge structures including new twin, three span plank bridges over Bonds Creek, a single span land bridge over the eastern gas and trunk main and demolition of the existing bridge over the Sydney Catchment Authority’s Upper Canal which enabled the installation of a new super “T” girder single span bridge.
