Thurra River Bridge
Location
East Gippsland, Victoria
Value
$8 million
Client
Department of Energy, Environment and Climate Action
Status
Complete
About the project
BMD successfully delivered the replacement Thurra River Bridge in Croajingolong National Park, Victoria, restoring critical access after the original bridge was destroyed in the 2019 Black Summer bushfires and further damaged during the 2022 East Gippsland floods.
The Thurra River Bridge is a vital link for the Cann River community. It supports the local economy by providing access to key tourist destinations like Thurra River Campground and Point Hicks Lighthouse while also serving as a crucial route for bushfire relief and recovery efforts.
Project scope
Demolition of the existing bridge

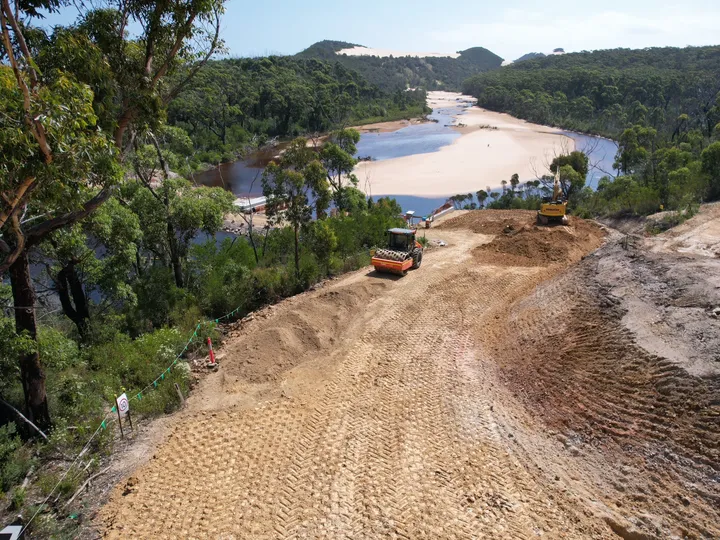

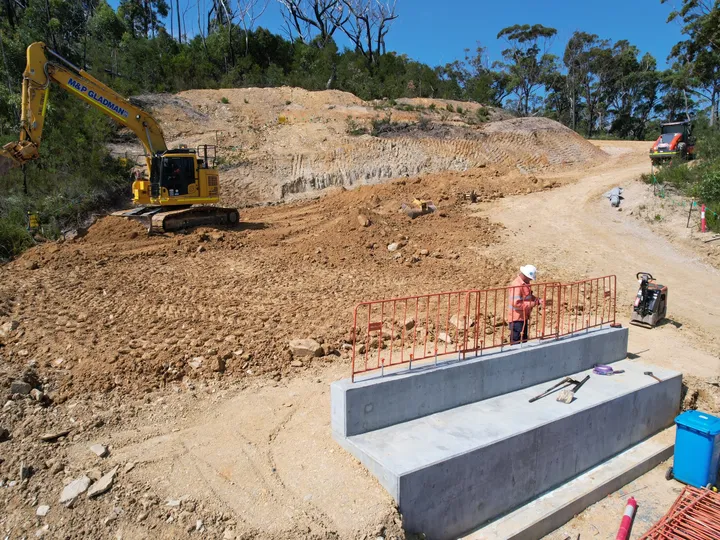

Clearing and bulk earthworks

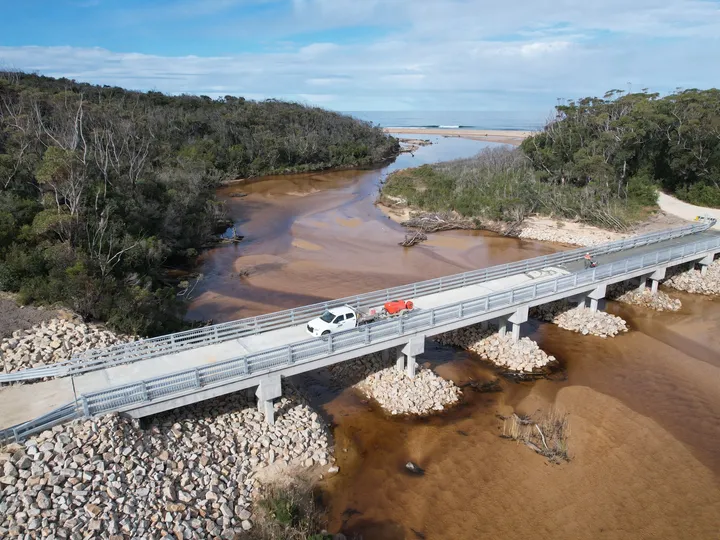

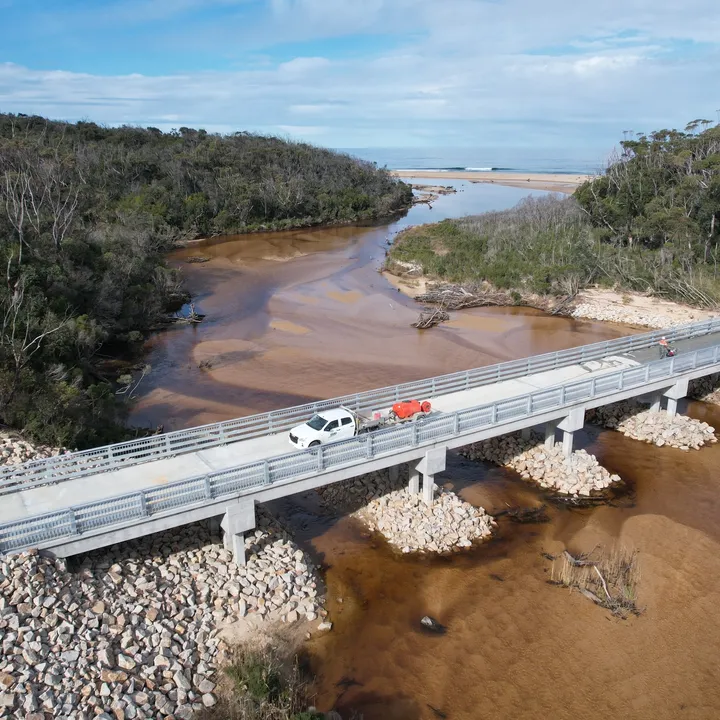

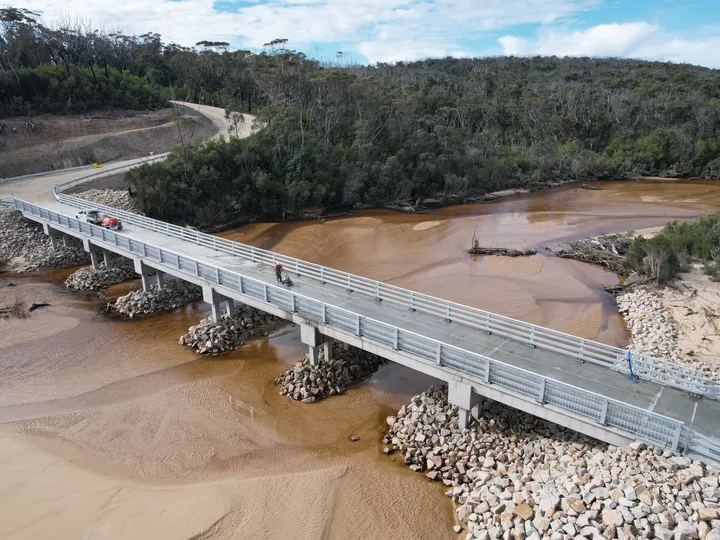

Construction of the seven span bridge over Thurra River
Drainage and pavement works
Line marking, street furniture and signage
Landscaping and finishing works
Outcomes

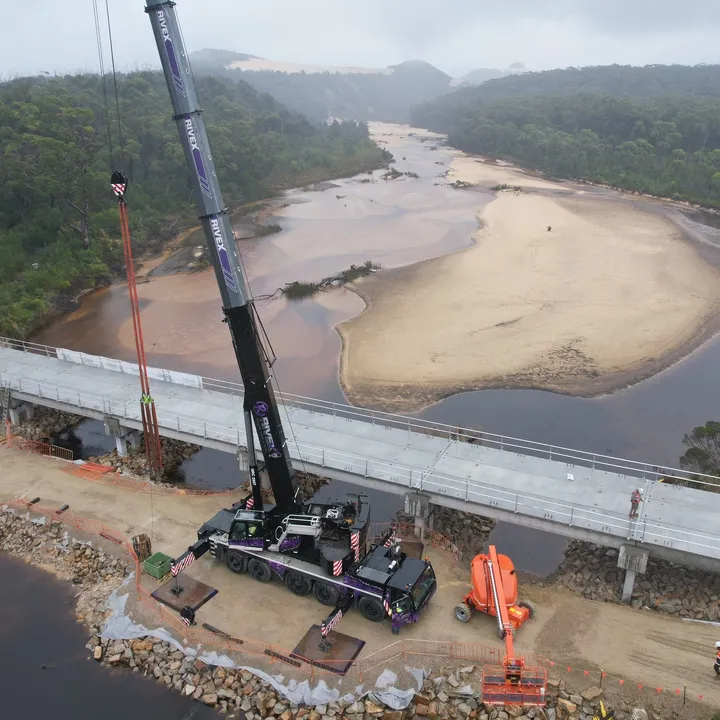

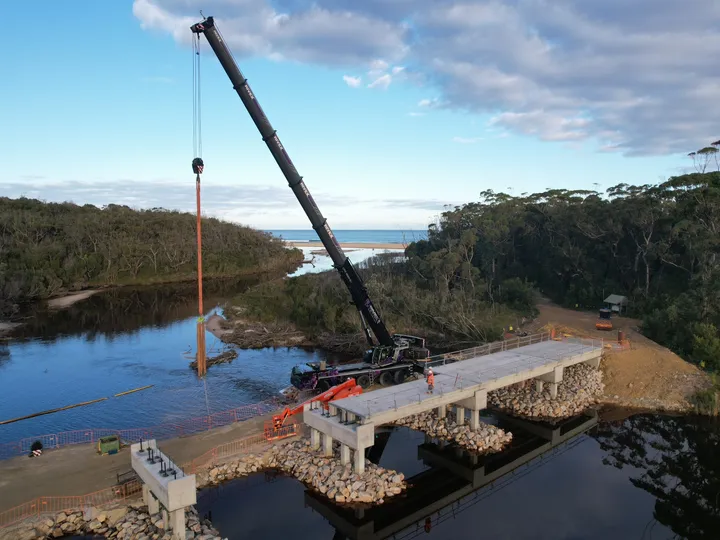

Due to the restricted width of the site’s access route, large construction equipment such as the crane and piling rig, were disassembled for transport on semi-trailer trucks, then reassembled on site, ensuring efficient operation in the challenging environment.
BMD developed the bridge design to maximise the use of precast concrete bridge elements, strategically addressing the challenges posed by the project's remote location and limited concrete supply. This approach streamlined the construction timeline and minimised environmental impact by reducing the need for in-situ concrete pours.
To further optimise transportation logistics, the bridge beam length was reduced from 15 metres to 12 metres, facilitating the efficient delivery of beams to the remote site. This adjustment eliminated the need to widen and resurface access routes, resulting in significant time and cost savings.
Industry Awards
CCF VIC Earth Awards, Project Value $5 – 10 million category finalist
